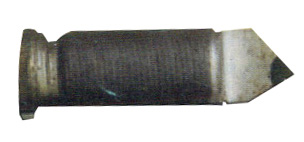

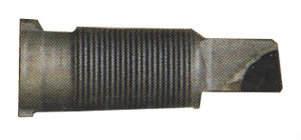

Microbore Cartridges

T = Tool Point offset is on the Right of centre of cartridge

Microbore No.	M.Min Bore	Length	T

M1 A2	16.1	14.2	0.4
M1 B2	13.4	11.4	0.4
M2 A2	21.1	19.9	0.4
M2 B2	18.8	16.8	0.4
M3 A2	26.1	25.5	0.8
M5 A2	41.4	39.8	1.2
M5 B2	35.8	33.4	1.2
M7 A2	58.8	55.7	1.6
M7 B2	53.3	49.3	1.6

   All dimension in MM
   12° top rake can be used for Aluminium
   All Specifications subject to change without notice
   All left hand cartridges will have same tool Geomentry
   While ordering please specify PCD or CBN

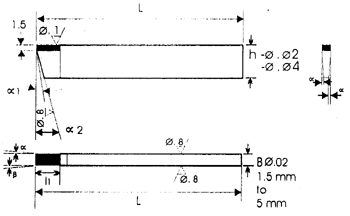

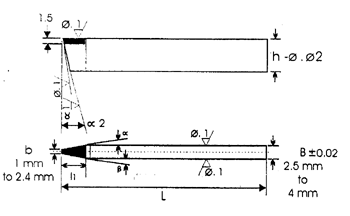

1. Other tool nose radius on request.

2. Other tool dimensions on request.

3. R - Right hand cutting; L - Left hand cutting (Please specify ordering).

4. Other cutting edge width available on request.

5. Please specify PCD / PCBN while ordering.
