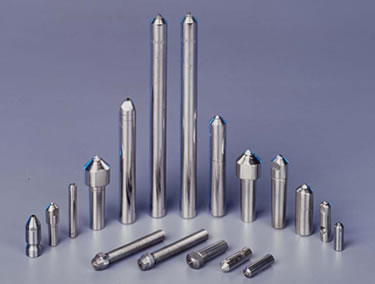

Single Point Diamond Dressers
are made of selected diamonds,
mounted in a matrix. Only one cutting edge is
presented to the grinding wheel. Diamonds for
Single Point Dressing Tools are selected for their
structural strength, number of points, degrees
of sharpness, and lack of determental flaws. The
proper selection of size and quality appropriate
for a given application required qualified judgement.
offer four grade of diamonds for Single Point
-"MA" Grade -Average.
-"MS" Grade -Superior.
-"MES" Grade -Extra Superior.
Point -"GEM" Grade.
Diamond Dressing tools are used for dressing and truing all
sizes of grinding wheels that are made of Silicon Carbide
or Aluminum Oxide.
Grinding Wheels are dressed and trued with the view to achieve
the following objectives:
remove "Blunt Grits" Clogged Surfaces and
Foreign Substances from the grinding wheel to expose
new and sharp grains and to enable the grinding wheel
to grind the work piece properly and effectively
obtain and maintain desired shapes or profiles on the
restore the concentricity of the grinding wheel
Grinding techniques and equipment have so advanced during
the past few decades tolerances of ± 0.001 are quite
normal. In maintaining tolerances of this order Diamond dressing
tools have become virtually indispensable.
