Rockwell Diamond
Indentors

Vickers & Knoop Type
Indentors

Brinell Type
Indentors

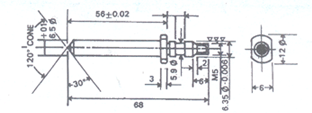

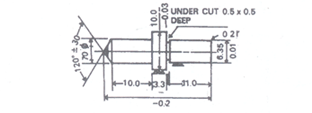

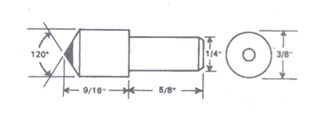

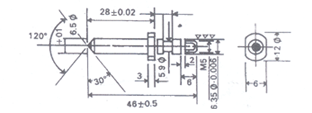

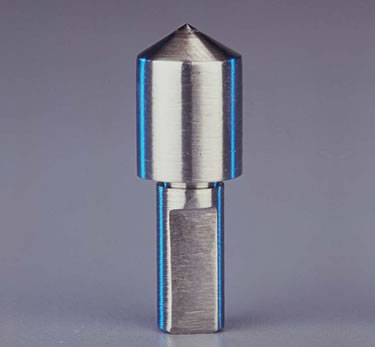

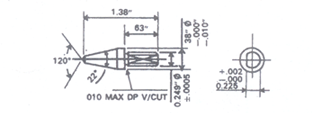

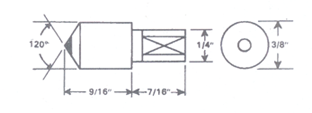

Rockwell Diamond Indentors

An exceptionally fine clean Octahedron diamond is super lapped to an exact angle of 120 degrees with incredible MICROFINISH to provide the highest standards of precision and performance.

Type of Indentors
	Rockwell
	Reicherter
	Avery
	Wilson

Grades Available
	Grade I
	Super Grade
	Extra Superior Grade

^ TOP

Standard Indentors for Hardness Machines
	Rockwell
	Reicherter
	Reicherter
	Avery
	Wilson
	Rockwell

^ TOP

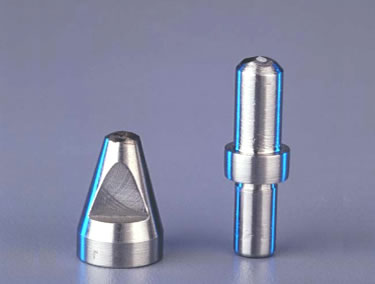

Vickers Type Indentors

A superior quality clean "GEM" quality Diamond is super lapped to a square pyramid with an apex angle of 136 Degrees. to provide the highest standards of precision and performance.

Brinell Type Indentors

We manufacture all types of Brinell type intenters in various sizes to suit the customer requirements.
(ie) (1/16", 5/32", 3/16", 1/4", 1.55mm, 3.0mm, 5.0mm etc.,)

^ TOP
