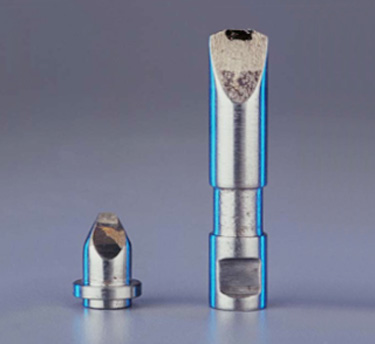

Balaji Forming & Chisel Type Diamond Dressers are used for profile dressing of a grinding wheel meant for thread and gear grinding. The forming chisels and cones are used for this purpose and are made of the right quality of diamond cut and polished to the profile of the part to be ground. These chisels and cones are made with tolerance for radius and angles. Forming dressers are used on machines such as Matrix, Newell, Reishauer etc. whereas the Chisel dressers are used on machines such as Diaform. Akuform and other types of radius and profile forming equipment.

SHAPING TOOLS
TYPE  RADIUS IN
INCHES

DIMENSIONS
COPYING

60° LAPPED DRESSING TOOL

Diamonds are ground and lapped to precise angles.
Tolerance : Centerset to T.I.R ± .002.
Specify Ø A & B
DIAFORM 0.125
0.250
0.500
DIAFORM 0.125
0.250
0.500
DIAFORM 0.125
0.250
0.500
DIAFORM 0.125
0.250
0.500
60° CHISEL 3/8'' x 2.1/2''
3/8'' x 3''
7/16'' x 2.1/2''
7/16'' x 3''
COPYING FORTUNA
