Resin & Metal Bond Wheels

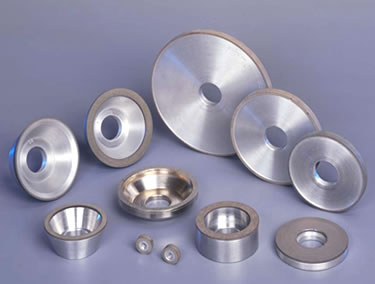

Balaji Diamond & Cbn Wheels are manufactured of superior quality and available in Resin, Metal Vitrified Bonds and Electrometallic bonds. They are used for grinding carbides, glass, ceramics, ferrites and other hard and abrasive materials. These are available in diameters ranging from 3.0 mm to 600 mm. Bond type, grit size and concentration are selected to ensure maximum wheel performance according to the application.

STANDARD TYPE OF DIAMOND & CBN GRINDING WHEELS

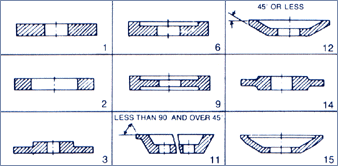

BASIC CORE SHAPES

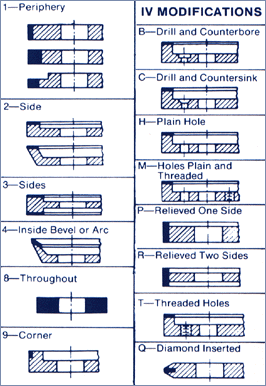

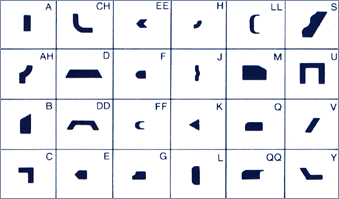

SHAPES OF ABRASIVE CROSS SECTION

LOCATIONS OF ABRASIVE SECTION
^ TOP
1Air 1A1 14A1
1F1 6A2 11A2
12A2 - 20o 12A2 - 45o 4A2
12V2 11V9 12V9
6A9 11E9 9A3
14U1 4B2 1B5
1V1



1A8 DW 3A1
1L1/1Q1 12V5 12C9/11C9


   1 A1R
D T X
75 0.8 - 3 2-5
100 0.8 -3 2-5
125 1.0-3 2-5
150 1.0-3 2-5
175 1.0-3 2-5
200 1.0-3 2-5
250 1.5-3 5-8
300 3-5 5-8
*H & S TO BE SPECIFIED.

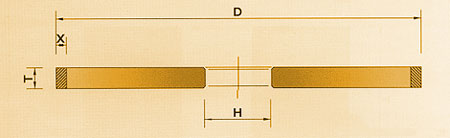

   1A1
D T X
20 4-10 2-5
25 4-10 2-5
40 4-10 2-5
50 4-10 2-5
75 4-10 2-5
100 4-12 2-5
125 4-20 2-5
150 4-20 2-5
175 5-20 2-5
200 5-20 2-5
250 10-60 3-5
300 10-60 3-5
350 10-20 3-5
400 15-20 3-5
500 15-30 3-5
600 15-30 3-5
*H TO BE SPECIFIED.
^ TOP

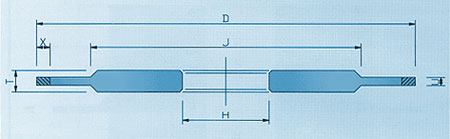

   14A1
D U X
75 1-3 3-5
100 1-3 3-5
125 1-3 3-5
150 1-3 3-5
175 1-3 3-5
200 1-3 3-5
250 1.5-3 3-5
300 3-5 3-5
*H,J & T TO BE SPECIFIED.
^ TOP

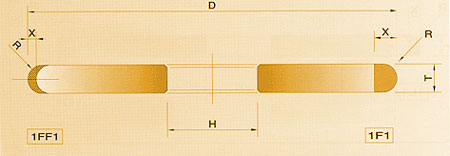

   1FF1 / 1F1
D T X R
50 3-10 3-5 MORETHAN T/2
75 3-10 3-5 MORETHAN T/2
100 3-10 3-5 MORETHAN T/2
125 3-10 3-5 MORETHAN T/2
150 3-10 3-5 MORETHAN T/2
200 3-10 3-5 MORETHAN T/2
250 10-15 3-5 MORETHAN T/2
300 10-20 3-5 MORETHAN T/2
*H & R TO BE SPECIFIED.
^ TOP

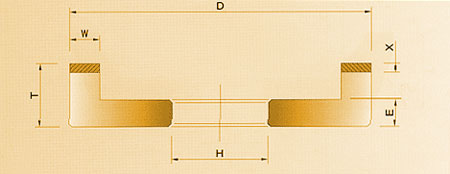

   6A2
D W X
50 3-5 2-10
75 3-10 2-10
100 3-15 2-10
125 3-20 2-10
150 3-30 2-10
200 3-30 2-10
250 3-40 2-10
300 3-100 2-10
400 3-100 2-10
*T, H & E TO BE SPECIFIED
^ TOP

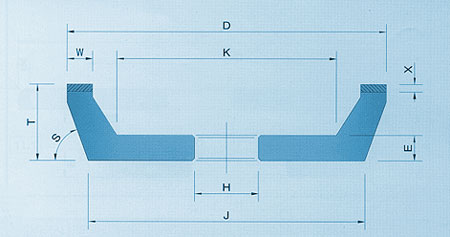

   11A2
D W X
75 3-10 2-10
90 3-12 2-10
100 3-15 2-10
125 3-12 2-10
150 5-12 2-10
200 5-30 2-10
250 10-40 2-10
300 10-30 2-10
400 10-30 2-10
* H, S, K, J, T & E TO BE SPECIFIED.
^ TOP

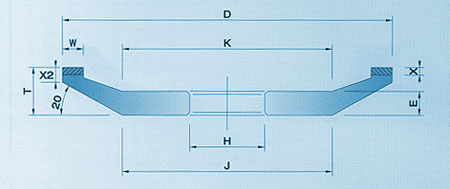

   12A2 - 20o
D W X
75 3-10 2-10
90 3-12 2-10
100 3-15 2-10
125 3-12 2-10
150 5-12 2-10
200 5-30 2-10
250 10-40 2-10
300 10-30 2-10
400 10-30 2-10
*H ,K, J ,T & E TO BE SPECIFIED.
^ TOP

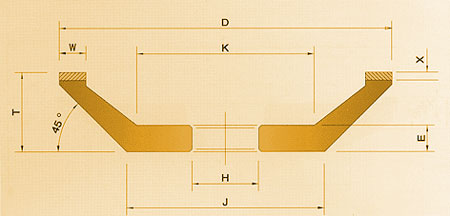

   12A2 - 45o
D W X
75 3-10 2-10
90 3-12 2-10
100 3-15 2-10
125 3-12 2-10
150 5-12 2-10
200 5-30 2-10
250 10-40 2-10
300 10-30 2-10
400 10-30 2-10
*H ,K, J, T & E TO BE SPECIFIED.
^ TOP
   4A2
D W X
75 4-6 2-5
100 4-6 2-5
125 5-10 2-5
150 5-10 2-5
200 5-10 2-5
*H ,S ,J ,T & E TO BE SPECIFIED.
^ TOP

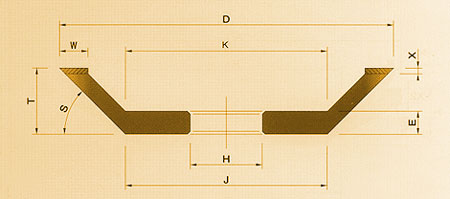

   12V2
D W X
75 3-10 2-10
100 3-12 2-10
125 3-15 2-10
150 3-12 2-10
200 5-12 2-10
*H, S, K, J, T & E TO BE SPECIFIED.
^ TOP

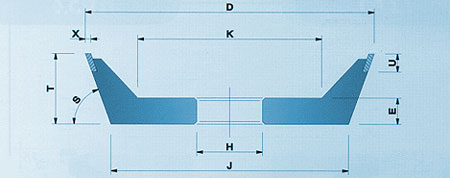

   11V9
D U X
75 6-10 2-3
90 6-10 2-3
95 6-10 2-3
100 6-10 2-3
125 6-10 2-3
150 6-10 2-3
*H ,S ,K ,J ,T & E TO BE SPECIFIED.
^ TOP

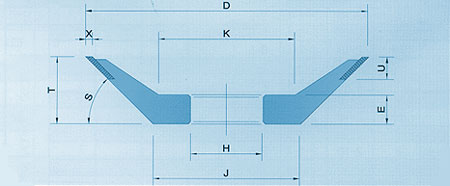

   12V9
D U X
75 6-10 2-3
90 6-10 2-3
95 6-10 2-3
100 6-10 2-3
125 6-10 2-3
150 6-10 2-3
*H ,S ,K ,J ,T & E TO BE SPECIFIED.
^ TOP

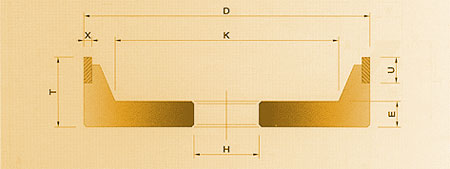

   6A9
D U X
100 10-20 2-3
150 10-20 2-3
*H ,K ,T & E TO BE SPECIFIED.
^ TOP

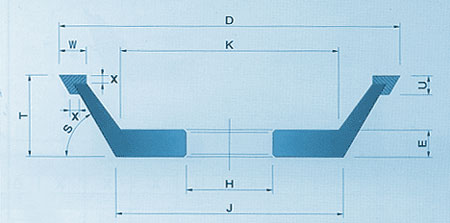

   11E9.
D W U X
75 6-10 5 2
100 6-10 5 3
*H ,S ,K ,J ,T & E TO BE SPECIFIED.
^ TOP

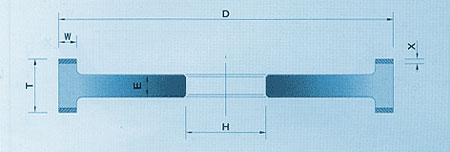

   9A3
D W X
100 6-10 2-5
125 6-15 2-5
150 6-15 2-5
175 6-15 2-5
200 6-15 2-5
*H ,T & E TO BE SPECIFIED.
^ TOP

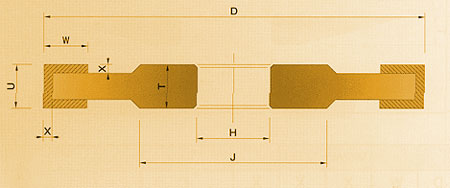

   14U1
D W U X
100 4-6 3-6 2-3
125 4-10 4-10 2-3
150 4-10 4-10 2-3
*H ,J & T TO BE SPECIFIED.
^ TOP

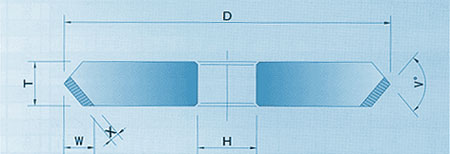

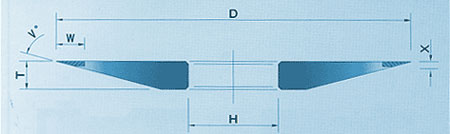

   4B2
D W T Vo
50o 5-10 6 10o
75o 5-10 8 10o-15o
90o 5-10 10 10o-15o
100o 5-10 12 10o-20o
125o 5-10 12 10o-20o
150o 5-10 12 10o-20o
*H & Vo TO BE SPECIFIED.
^ TOP
   1B5
D T W X
75o 3-4 3-5 2-5
100o 3-4 3-5 2-5
*H ,T & Vo TO BE SPECIFIED.
^ TOP

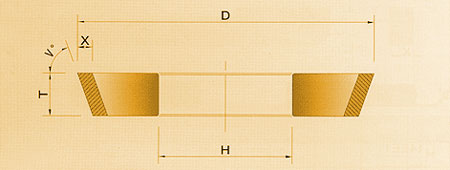

   1V1
D T X
75o 6-10 2-3
100o 6-10 2-3
*H ,T & Vo TO BE SPECIFIED.
^ TOP
OTHERS
The Following wheels manufactured according to your specific requirements :

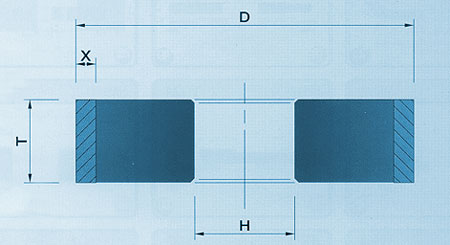

   1A8
^ TOP

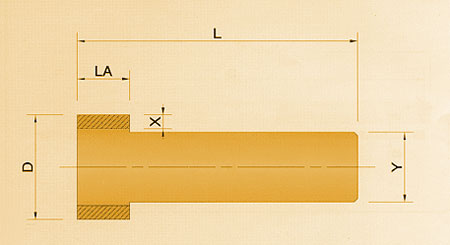

   DW

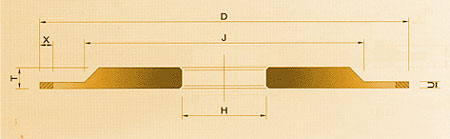

   3A1
^ TOP

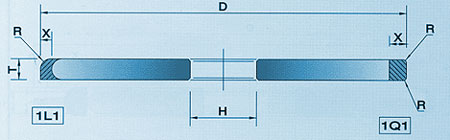

   1L1/1Q1

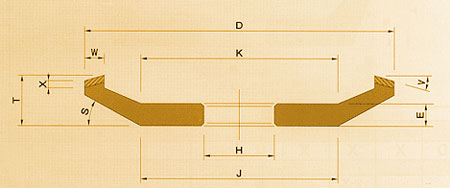

   12V5
^ TOP

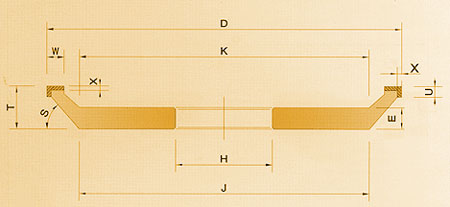

   12C9/11C9
^ TOP

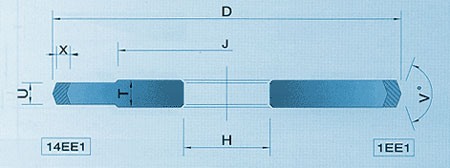

   14EE1/1EE1

Wheels other than those depicated above can be made available against your specific request.
Dimensions other than those specified can be made available on request.
The wheels can be offered in Resin, Metal& Vitrified Bonds.

^ TOP
Electro Deposited Wheels

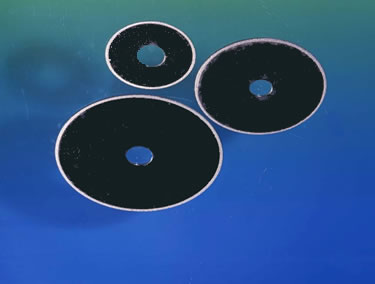

Balaji Electro Deposited Wheels are used for cutting and grinding various materials such as tungsten carbide, ceramics, glass, ferrites, synthetic stones and other construction materials such as glazed tiles etc. available in various sizes upto 600 mm dia. These cut-off wheels can also be used for cutting high density carbons, fibre glass, glass reinforced plastics, hard rubbers and hard plastics.

Diameter Blank Thickness
100 0.5
100 0.8
100 1.0
100 1.5
100 2.0
125 0.5
125 0.8
125 1.0
125 1.5
125 2.0
150 0.5
150 0.8
150 1.0
150 1.5
150 2.0
200 0.8
200 1.0
200 1.5
200 2.0
200 2.6
Diameter Blank Thickness
250 1.2
250 1.5
250 2.0
250 2.6
250 3.2
300 1.5
300 2.0
300 2.6
300 3.2
- -
350 1.5
350 2.0
350 2.6
350 3.2
- -
400 1.5
400 2.0
400 2.6
400 3.2
- -

                      All other sizes on specific request.
